MACHINE DESCRIPTION:

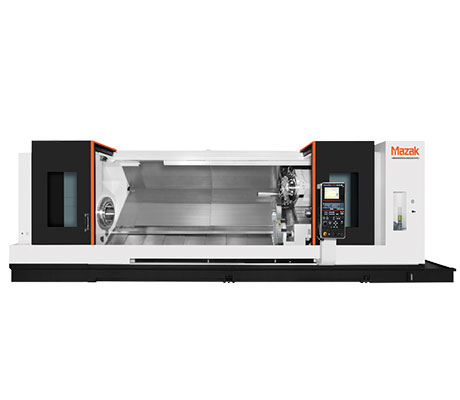

The SLANT TURN NEXUS 600M CNC is a powerful, high torque, heavy-duty, big bore Turning Center for large part turning applications such as oil field pipe /casings, pipeline control valves, turbine, components, and aircraft engine parts.

The STN600M offers maximum machining lengths up to 160", and depending on chuck size, maximum machining diameters to 36", for long, large-diameter parts. The spindle bore is 14.7" diameter and can handle large diameter pipe and other components that required front and rear chucking. STN600M machines also offer powerful rotary tool capability for secondary drilling and milling operations on centerline.

MACHINE CHARACTERISTICS:

• High torque, High Horsepower geared headstocks for heavy-duty cutting

• Spindle C-axis positioning for slotting cuts and precision drilled holes

• Various front and rear chuck options available

• 14.7" diameter Spindle Bore

• 12-position Non lift turrets for rapid tool indexing

• Powerful Rotary Tool turret for secondary mill/drill operations

• NC servo-driven tailstocks

• Mazak MX Hybrid Roller Guide System

• MATRIX NEXUS 2 CNC control
